Specifications:
1,Working medium: Fluorinated Refrigerant,Flesh water
2,Body material:Brass
3,Max.Working pressure:120℃
4,Max.Working pressure:45Bar(High pressure type)
5,Max.working pressure:25Bar(Low pressure type)
Specification(High Pressure Type)
|
Model |
Connecting
Size |
Regulating
Range(bar) |
M.W.P
(bar) |
Refrigerant
(s) |
Medium |
M.W.P
(bar) |
Factory
Setting(bar) |
|
PCV-1G |
1” |
8-35 |
45 |
410A |
Fresh
Water |
10 |
8 |
|
PCV-2G |
1/2” |
|
PCV-3G |
3/8” |
|
PCV-4G |
3/4” |
Specification(Low Pressure Type)
|
Model |
Connecting
Size |
Regulating
Range(bar) |
M.W.P
(bar) |
Refrigerant
(s) |
Medium |
M.W.P
(bar) |
Factory
Setting(bar) |
|
PCV-2G |
1/2” |
6-18 |
25 |
Fluorinated
Refrigerants |
Fresh
Water |
10 |
6 |
|
PCV-3G |
3/8” |
|
Model |

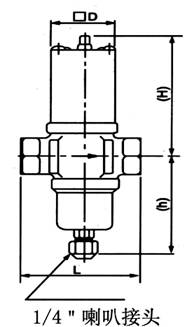

Apperance Drawing :mm |
|
L |
H |
h |
D |
|
PCV-1G |
90 |
115 |
97 |
59 |
|
PCV-2G |
57 |
93 |
76 |
41 |
|
PCV-3G |
57 |
93 |
76 |
41 |
|
PCV-4G |
80 |
104 |
87 |
42 |
